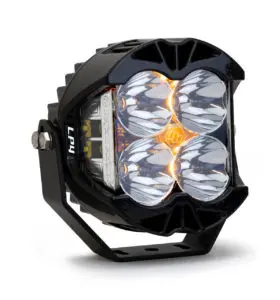

LP4 Pro LED Auxiliary Light Pod - Universal
NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640175.
Description
The LP4 is the smallest variant in the LP lineup and uses the same design architecture of its larger siblings. The LP4 features a total of 8,857 raw lumens, pumping out 6,885 forward projecting raw lumens and 1,972 raw lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT) providing 200-degree spread of light that illuminates zones 1, 2 and 3 along with reaching into zone 4 spot. To keep your light performing at its highest level, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology that allows air to travel through the front of the housing and over the rear heat sinks - drastically improving cooling capacity and performance. The addition of red, blue, or green backlight options alongside our original amber on the LP4 Pro gives enthusiasts the choice to customize their vehicle for shows, photo shoots or anywhere they want to bring attention. Backed by our 30 Day Satisfaction Gaurantee and Lifetime Limited Warranty for the ultimate in purchase protection. NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640175.
Disclaimer: Baja Designs LP series lights with red, blue, or green backlights are for EXHIBITION USE ONLY. Never use it on public roads to avoid confusion with law enforcement or emergency vehicles. The owner/driver is responsible for observing all highway equipment laws and safety regulations.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100%
5000K Daylight – Less Driver Fatigue, Natural Color
SKU: 290001
Specifications
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 1 |
Lighting Modes | Beam/Day-Time Running Backlighting |
Lighting Quantity | 4 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | LP4 Pro LED Light Pod |
Secondary Amperage Rating (A) | 1.000 |
Secondary Brightness (Lumens) | 1972 |
Secondary Light Quantity | 4 LEDs |
Secondary Lighting Technology | LED |
Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
Secondary Wattage (W) | 15 |
Terminal Connector | DT06-4S Deutsch |
Terminal Type | Mating Connector |
Universal or Specific | Universal |
Wattage (W) | 75.900 |
Wiring Harness Included | No |
Amperage Rating (A) | 5.500 |
Average Rated Life (hr.) | 49,930 |
Backlight Amperage Rating (A) | 0.350 |
Backlight Wattage (W) | 4.830 |
Beam Pattern | Spot |
Bezel Material | Powder Coat Cast Aluminum |
Brightness (Lumens) | 8857 |
Description | Spot; Clear |
Housing Color | Black |
Housing Material | Powder Coat Cast Aluminum |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
Depth (in.) | 3.200 |
Height (in.) | 5.100 |
Length (in.) | 5.100 |
Weight (lbs.) | 2.800 |
SKU: 290003
Specifications
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | LP4 Pro LED Light Pod |
Secondary Amperage Rating (A) | 1.000 |
Secondary Brightness (Lumens) | 1972 |
Secondary Light Quantity | 4 LEDs |
Secondary Lighting Technology | LED |
Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
Secondary Wattage (W) | 15 |
Terminal Connector | DT06-4S Deutsch |
Terminal Type | Mating Connector |
Universal or Specific | Universal |
Wattage (W) | 75.900 |
Wiring Harness Included | No |
Amperage Rating (A) | 5.500 |
Average Rated Life (hr.) | 49,930 |
Backlight Amperage Rating (A) | 0.350 |
Backlight Wattage (W) | 4.830 |
Beam Pattern | Driving/Combo |
Bezel Material | Powder Coat Cast Aluminum |
Brightness (Lumens) | 8857 |
Description | Driving/Combo; Clear |
Housing Color | Black |
Housing Material | Powder Coat Cast Aluminum |
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 1 |
Lighting Modes | Beam/Day-Time Running Backlighting |
Lighting Quantity | 4 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Included | Yes |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
Depth (in.) | 3.200 |
Height (in.) | 5.100 |
Length (in.) | 5.100 |
Weight (lbs.) | 2.800 |
SKU: 290013
Specifications
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | LP4 Pro LED Light Pod |
Secondary Amperage Rating (A) | 1.000 |
Secondary Brightness (Lumens) | 1972 |
Secondary Light Quantity | 4 LEDs |
Secondary Lighting Technology | LED |
Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
Secondary Wattage (W) | 15 |
Terminal Connector | DT06-4S Deutsch |
Terminal Type | Mating Connector |
Universal or Specific | Universal |
Wattage (W) | 75.900 |
Wiring Harness Included | No |
Amperage Rating (A) | 5.500 |
Average Rated Life (hr.) | 49,930 |
Backlight Amperage Rating (A) | 0.350 |
Backlight Wattage (W) | 4.830 |
Beam Pattern | Driving/Combo |
Bezel Material | Powder Coat Cast Aluminum |
Brightness (Lumens) | 8857 |
Description | Driving/Combo; Amber |
Housing Color | Black |
Housing Material | Powder Coat Cast Aluminum |
Lens Color | Amber |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 1 |
Lighting Modes | Beam/Day-Time Running Backlighting |
Lighting Quantity | 4 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Included | Yes |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
Depth (in.) | 3.200 |
Height (in.) | 5.100 |
Length (in.) | 5.100 |
Weight (lbs.) | 2.800 |
