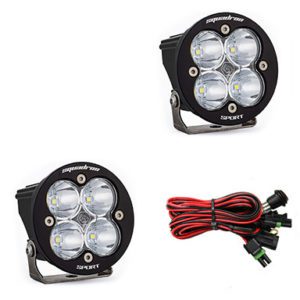

Squadron-R Sport Black LED Auxiliary Light Pod Pair - Universal

Description
The Baja Designs Squadron-R Sport LED Light pod pair features a larger 4-inch front round bezel designed for those wanting a more traditional styling and for aftermarket bumpers that feature a 4-inch round hole. Don’t let the compact size of these light pods fool you as they will fit almost anywhere you need auxiliary off-road lighting on your truck, Jeep, SUV, UTV and any other vehicle that needs lights. While compact in size the Squadron-R Sport is equipped with a sleek black gloss aluminum housing that outshines the competition through both appearance and performance using next generation LEDs pushing out 3,162 lumens at 30 watts. Our 30-Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection. USPTO Reg No. 5,766,659
ELS™ Scores:
Click to learn more about our Effective Lighting Score (ELS)
Squadron Sport Spot Clear: ELS 112⁰/ 5.3/ 229'/ 1973
Squadron Sport Driving Combo Clear: ELS 112⁰/ 7.1 / 183'/ 2441
Squadron Sport Wide Cornering Clear: ELS 124⁰/ 6.7/ 114'/ 2506
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses and Optics
ClearView – All the Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100%
5000K Daylight – Less Driver Fatigue, Natural Color
SKU: 587801
Specifications
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 2 |
Lighting Modes | Beam |
Lighting Quantity | 4 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | Squadron-R Sport LED Light Pod Pair w/ Wiring Harness |
Amperage Rating (A) | 2 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Spot |
Bezel Material | Powder Coated Cast Aluminum |
Brightness (Lumens) | 3,150 |
Description | Round; Spot; Clear; Pair |
Housing Color | Black |
Housing Material | Powder Coated Cast Aluminum |
Standards & Compliance
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
Depth (in.) | 2.77 |
Height (in.) | 3.5 |
Length (in.) | 3.5 |
Weight (lbs.) | 0.75 |
SKU:
Specifications
Wattage (W) | 26 |
Wiring Harness Included | Yes |
Housing Material | Powder Coated Cast Aluminum |
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 2 |
Lighting Modes | Beam |
Lighting Quantity | 4 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
SKU: 587806
Specifications
Product Type | Squadron-R Sport LED Light Pod Pair w/ Wiring Harness |
Wattage (W) | 26 |
Wiring Harness Included | Yes |
Amperage Rating (A) | 2 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Work/Scene |
Bezel Material | Powder Coated Cast Aluminum |
Brightness (Lumens) | 3,150 |
Description | Round; Work/Scene; Clear; Pair |
Housing Color | Black |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
Depth (in.) | 2.77 |
Height (in.) | 3.5 |
Length (in.) | 3.5 |
Weight (lbs.) | 0.75 |
SKU: 587803
Dimensions
Depth (in.) | 2.77 |
Height (in.) | 3.5 |
Length (in.) | 3.5 |
Weight (lbs.) | 0.75 |
Specifications
Amperage Rating (A) | 2 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Driving/Combo |
Bezel Material | Powder Coated Cast Aluminum |
Brightness (Lumens) | 3,150 |
Description | Round; Driving/Combo; Clear; Pair |
Housing Color | Black |
Housing Material | Powder Coated Cast Aluminum |
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 2 |
Lighting Modes | Beam |
Lighting Quantity | 4 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | Squadron-R Sport LED Light Pod Pair w/ Wiring Harness |
Wattage (W) | 26 |
Wiring Harness Included | Yes |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 587805
Dimensions
Depth (in.) | 2.77 |
Height (in.) | 3.5 |
Length (in.) | 3.5 |
Weight (lbs.) | 0.75 |
Specifications
Amperage Rating (A) | 2 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Wide Cornering |
Bezel Material | Powder Coated Cast Aluminum |
Brightness (Lumens) | 3,150 |
Description | Round; Wide Cornering; Clear; Pair |
Housing Color | Black |
Housing Material | Powder Coated Cast Aluminum |
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 2 |
Lighting Modes | Beam |
Lighting Quantity | 4 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | Squadron-R Sport LED Light Pod Pair w/ Wiring Harness |
Wattage (W) | 26 |
Wiring Harness Included | Yes |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 587813
Dimensions
Depth (in.) | 2.77 |
Height (in.) | 3.5 |
Length (in.) | 3.5 |
Weight (lbs.) | 0.75 |
Specifications
Amperage Rating (A) | 2 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Driving/Combo |
Bezel Material | Powder Coated Cast Aluminum |
Brightness (Lumens) | 3,150 |
Description | Round; Driving/Combo; Amber; Pair |
Housing Color | Black |
Housing Material | Powder Coated Cast Aluminum |
Lens Color | Amber |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 2 |
Lighting Modes | Beam |
Lighting Quantity | 4 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | Squadron-R Sport LED Light Pod Pair w/ Wiring Harness |
Wattage (W) | 26 |
Wiring Harness Included | Yes |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 587815
Dimensions
Depth (in.) | 2.77 |
Height (in.) | 3.5 |
Length (in.) | 3.5 |
Weight (lbs.) | 0.75 |
Specifications
Amperage Rating (A) | 2 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Wide Cornering |
Bezel Material | Powder Coated Cast Aluminum |
Brightness (Lumens) | 3,150 |
Description | Round; Wide Cornering; Amber; Pair |
Housing Color | Black |
Housing Material | Powder Coated Cast Aluminum |
Lens Color | Amber |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 2 |
Lighting Modes | Beam |
Lighting Quantity | 4 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | Squadron-R Sport LED Light Pod Pair w/ Wiring Harness |
Wattage (W) | 26 |
Wiring Harness Included | Yes |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
