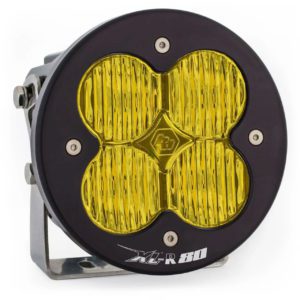

XL-R 80 LED Auxiliary Light Pod - Universal
NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640115.
Description
Take your off-road lighting to the next level with the Baja Designs XL-R 80 single auxiliary LED light pod, offering greater visibility and increased brightness. The XL-R80 uses Baja Designs trademarked high-speed spot reflectors providing for a longer and wider beam pattern with powerful next-generation LED technology that provides 18% greater distance and increased intensity over our previous generation model while pushing 9,022 raw lumens per light. Perfect for any off-road vehicle such as trucks, vans, UTVs and motorcycles. Similar to BD’s XL Pro model, the XL80 offers a 20 percent dimming feature, a powder coated housing and an anodized round bezel for that classic round look. Designed for users who want reliable off-road lighting solutions, all Baja Designs lights are backed by a 30-day satisfaction guarantee and a limited lifetime warranty for the ultimate in purchase protection. Please note, single light pods do not come with a wiring harness. The applicable wiring harness for this light is 640115.
ELS™ Scores:
Click to learn more about our Effective Lighting Score (ELS)
XL80 Driving Combo (Clear): ELS 62°/ 5.0/ 392'/ 8278
XL80 Wide Cornering (Clear): ELS 66⁰/ 6.1/ 202'/ 8063
Lens Pattern Options:
Driving Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.
Wide Cornering: The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.
Lens Color:
Clear: The original performance lens. Our clear lens combined with our 5000k LEDs provides light most similar to daylight, reducing driver fatigue and increasing terrain recognition.
Baja Amber:This performance-driven lens is designed for off-road driving in challenging conditions like dust, rain, snow, or fog. The Baja Amber lens minimizes glare, enhancing visibility and significantly improving your driving experience.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640115.
SKU: 760003
Dimensions
| Depth (in.) | 3.65 |
| Height (in.) | 5.24 |
| Length (in.) | 5.24 |
| Weight (lbs.) | 2.45 |
Specifications
| Amperage Rating (A) | 5.5 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 9,500 |
| Description | Round; Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Lighting Quantity | 4 |
| Lighting Technology | Cree LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL-R 80 LED Light Pod |
| Universal or Specific | Universal |
| Wattage (W) | 80 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 760005
Dimensions
| Depth (in.) | 3.65 |
| Height (in.) | 5.24 |
| Length (in.) | 5.24 |
| Weight (lbs.) | 2.45 |
Specifications
| Amperage Rating (A) | 5.5 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Wide Cornering |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 9,500 |
| Description | Round; Wide Cornering; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Lighting Quantity | 4 |
| Lighting Technology | Cree LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL-R 80 LED Light Pod |
| Universal or Specific | Universal |
| Wattage (W) | 80 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 760013
Dimensions
| Depth (in.) | 3.65 |
| Height (in.) | 5.24 |
| Length (in.) | 5.24 |
| Weight (lbs.) | 2.45 |
Specifications
| Amperage Rating (A) | 5.5 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 9,500 |
| Description | Round; Driving/Combo; Amber |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Amber |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Lighting Quantity | 4 |
| Lighting Technology | Cree LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL-R 80 LED Light Pod |
| Universal or Specific | Universal |
| Wattage (W) | 80 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 760015
Dimensions
| Depth (in.) | 3.65 |
| Height (in.) | 5.24 |
| Length (in.) | 5.24 |
| Weight (lbs.) | 2.45 |
Specifications
| Amperage Rating (A) | 5.5 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Wide Cornering |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 9,500 |
| Description | Round; Wide Cornering; Amber |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Amber |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Lighting Quantity | 4 |
| Lighting Technology | Cree LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL-R 80 LED Light Pod |
| Universal or Specific | Universal |
| Wattage (W) | 80 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
